Re: Clash with Backlash

Post by suraki »

Hi!

I use SFACT Lash option with trial and error method. Just a few calibration prints and the result is clearly visible:
left: w/o Lash comp, right: w comp

After Lash compensation, the bridge test is little better to:

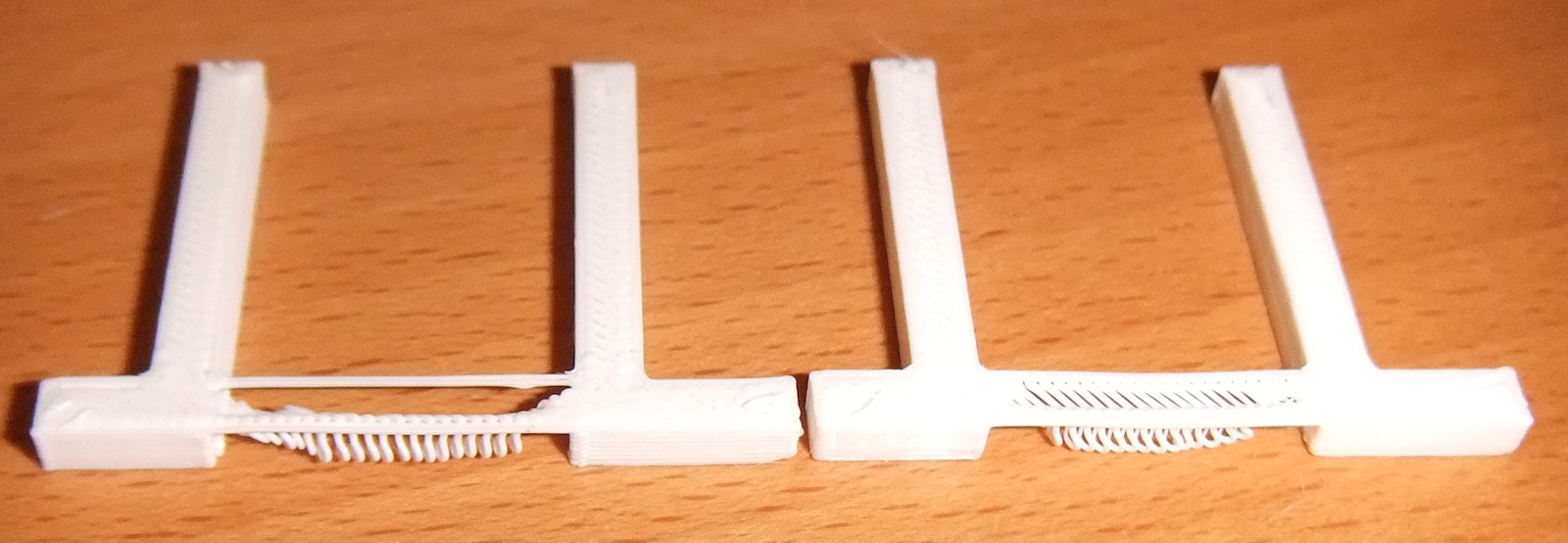

left: before Lash comp, right: after Lash comp

HLA
Posts: 73
Joined: Sat May 05, 2012 11:35 pm
Location: Vienna, Austria

Post by HLA »

Hi suraki,
This looks good :) Just one thing you might want to try:
set the parameter "Bridge width multiplier (ratio)" = 1.0 (under INSET) and reprint your bridge test ;)

MiguelKendrick
Posts: 4
Joined: Thu Jan 23, 2014 4:22 pm

Post by MiguelKendrick »

One thing I always consider is the perfect nozzle diameter. When I purchased 8 Big Boy spools of ABS filament at 3d2print, I learned that the optimal nozzle diameter is .3 mm. It will give you high quality prints, guaranteed.
